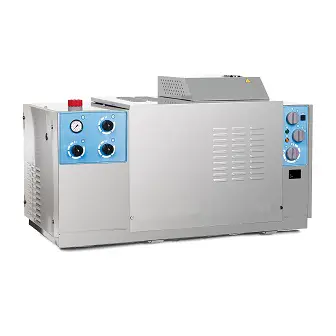

IWD H D1521 Pi
The IWD is a single operator hot water pressure washer intended for multifunctional use in small and medium-sized businesses. The IWD is available with a floor frame or wall frame and can be connected to a high-pressure pipe system with one or more tapping points.
Features
- 21 L/min
- 150 bar
-
More than 8000 m2 of warehouse available
-
More than 50 years of experience
-
Contact with cleaning specialists
-
We deliver top quality at the lowest price
Product information
The heart of the IWD system is a low-speed pump/motor set with a diesel oil-fired high-efficiency heating system based on the direct heating principle. A low-speed pump/motor set with a diesel oil-fired high-efficiency heating system based on the direct heating principle. The water temperature is thermostatically adjustable from 30°C to 145°C. To prevent calcification in the heating coil, the installation is equipped with an anti-scaling dosing system with independent pump. Cleaning agents - A & B - can be added with the the IWD under high pressure. A 24-volt remote control is available as an option, the machine is already prepared for this. Once electrically switched on, the IWD starts on pistol operation. If no more water is taken, the pump runs depressurized and stops after a few seconds. This system is very safe and reliable.Specifications
| Connected load | 400 V |
| Dimensions | 122x59x73 cm |
| Flow rate | 21 L/min |
| H d hose | 10 m |
| Max temperature in | 115 °C |
| Maximum pressure | 150 bar |
| Mobility | Stationary |
| Model | IWD |
| Nutrition | Diesel (burner), Electric (wire) |
| Power | 7.2 kW |
| Sales unit | st |
| Speed | 1450 r.p.m. |
| Temperature | Max. 115 °C |
| Tension | 400 Volt |
| Type | IWD H D1521 Pi |
