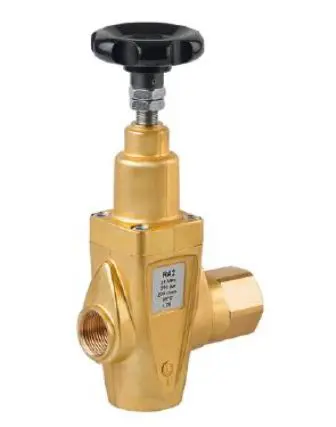

Unloader valve RA2 210 bar/230 liter
RA2 mechanical automatic pressure regulator. Including handwheel and for universal use.
Article number 269933000
View all specifications
Features
- 230 L/min
- 210 bar
-
More than 8000 m2 of warehouse available
-
More than 50 years of experience
-
Contact with cleaning specialists
-
We deliver top quality at the lowest price
Product information
Any high-pressure pump must be fitted with a means of regulating pressure, which also ensures that the pump will not be overloaded. An automatic pressure regulator is fitted onto the pressure side of the pump. Pump pressure is zero when the trigger gun is shut off.Specifications
| By pass | "1""" |
| Connection 1 (in) | 1" binnendraad BSP |
| Connection 2 (out) | 3/4" binnendraad BSP |
| Flow rate | 230 L/min |
| Max temperature in | 85 °C |
| Maximum pressure | 210 bar |
| Sales unit | st |
| Weight | 5.78 kg |
Parts
