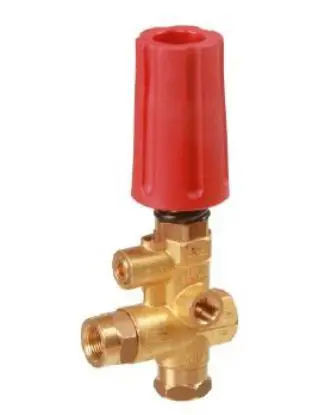

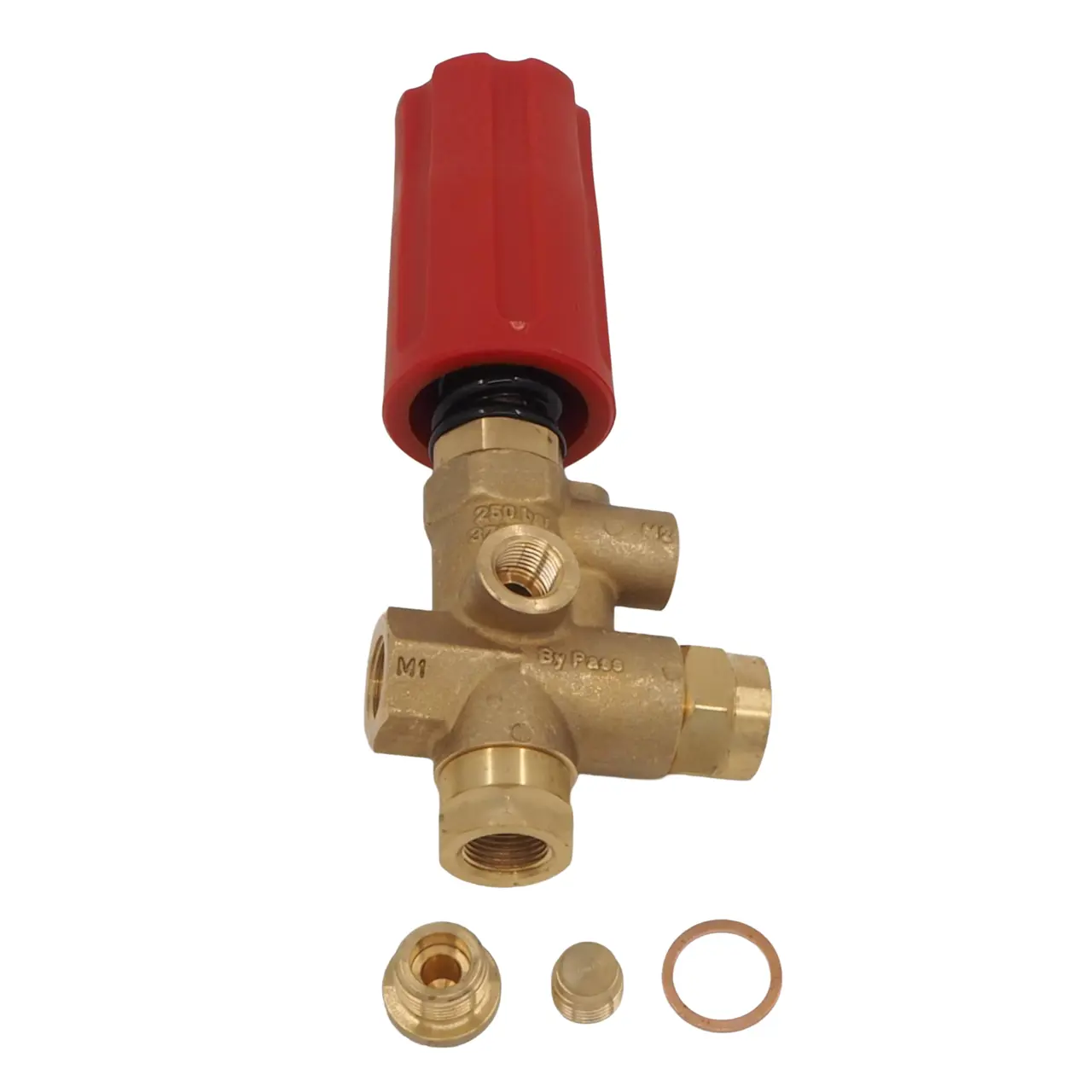

Unloader valve UL250H 250 bar/35 liter
UL250H mechanical automatic pressure regulator. Including handwheel and for universal use.
Article number 203755000
View all specifications
Features
- 35 L/min
- 250 bar
-
More than 8000 m2 of warehouse available
-
More than 50 years of experience
-
Contact with cleaning specialists
-
We deliver top quality at the lowest price
Product information
Any high-pressure pump must be fitted with a means of regulating pressure, which also ensures that the pump will not be overloaded. An automatic pressure regulator is fitted onto the pressure side of the pump. Pump pressure is zero when the trigger gun is shut off.Specifications
| By pass | "1/4""" |
| Connection 1 (in) | 3/8" binnendraad BSP |
| Connection 2 (out) | 3/8" binnendraad BSP |
| Flow rate | 35 L/min |
| Max temperature in | 60 °C |
| Maximum pressure | 250 bar |
| Sales unit | st |
| Weight | 0.775 kg |
