Snijringkoppelingen

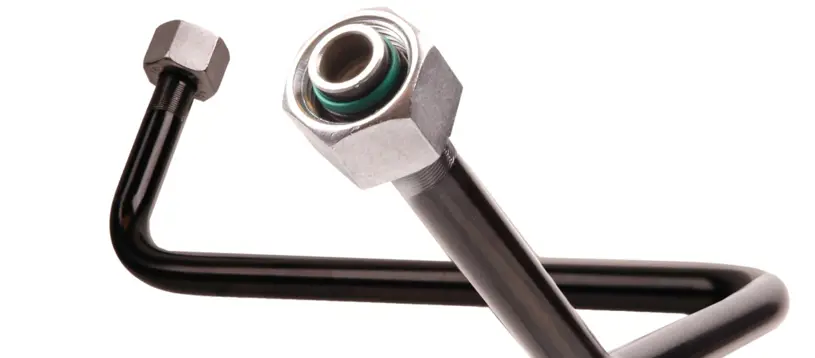

High-pressure compression fittings and cutting ring fittings

High-pressure cutting ring couplings have the ability to create reliable watertight connections without the use of welding equipment or special tools. Instead, they use a cutting ring mechanism that grips and seals the high-pressure pipe, creating a leak-free and durable connection. This makes the installation and maintenance of high-pressure piping systems significantly easier and cost-effective. More information

Loading

Suitable for high-pressure piping systems

Our cutting ring couplings are suitable for connecting high-pressure piping systems. We have different types of couplings such as, knee couplings, end couplings, tees and reducer couplings.

Fitted in zinc nickel-plated steel or stainless steel

Our cutting ring couplings are available in two different versions. Which type of materials you end up choosing depends mainly on the environment where the pipework will eventually be mounted.

Zinc nickel-plated steel cutting ring couplings

Zinc nickel plating is a technique that achieves corrosion protection of at least 1,000 hours NSS (no red rust) with a very thin layer of only 5 μm. Zinc nickel-plated fittings are often used in combination with galvanised pipe and are well suited for use in buildings, stables, workshops and industry.

stainless steel cutting ring couplings

RVS cutting ring couplings are commonly used in combination with stainless steel high-pressure piping. These couplings are stainless and are often used in environments where they are frequently exposed to weather influences and chlorine vapours. Stainless steel is therefore especially suitable for use in, for example, swimming pools (in connection with chlorine vapours), the food industry and applications where the pipework is exposed to additional weather influences, such as outdoor washing areas.

Various sizes and models available

We have various sizes of couplings available including:

  • 12mm
  • 15mm
  • 22mm
  • 28mm

We also have different types of couplings to complete a piping system such as:

  • Knee couplings
  • T-joints
  • End couplers
  • Diverter couplings

Would you like advice on the fittings and materials needed for your pipework? We would be happy to advise which material type and size is most suitable for your pipework.
