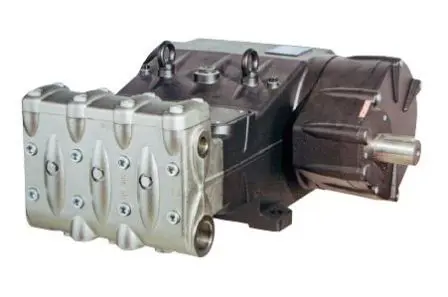

Pump MK60 170 bar/346 liter + gearbox 1:3,278
The Pratissoli plunger pump can be driven from the left or the right-hand side, and is suitable for a flexible coupling, V-belt transmission or a power take-off driveshaft.
Article number 271998000
View all specifications
Features
- 346 L/min
- 170 bar
- Pratissoli
- MK2 60
-
More than 8000 m2 of warehouse available
-
More than 50 years of experience
-
Contact with cleaning specialists
-
We deliver top quality at the lowest price
Product information
The plunger pump has a chemically nickel-plated 420 stainless-steel pump head, and stainless-steel valves with a plastic cage. The spherical valves generate better through-flow, and therefore less noise. Furthermore, these valves close better, because they contact the seat in a different place every time. This pump has fully ceramic plungers with water-cooled packing seals. The pump has an over-sized gear system with splash lubrication and has a maximum permissible water temperature of 55 °C. Due to a special patented (high-quality aluminium) crankcase design, the oil temperature is 10° to 15 °C lower. The connecting rods are made of high-quality aluminium alloy which can withstand extremely high loads. Due to the choice of materials, this pump has a very low level of wear. By investing now in a high-quality pump, financial savings will be made in future.Specifications
| Drive | Vertragingskast |
| Flow rate | 346 L/min |
| Max temperature in | 50 °C |
| Maximum pressure | 170 bar |
| Power | 112 kW |
| Sales unit | st |
| Speed | 1800 r.p.m. |
| Type | MK2 60 |
| Weight | 427 kg |
